903nm narrow-band filter

Narrowband 903nm laser range finder filter (narrow band pass filter) is a kind of bandwidth is very narrow, short wave and long wave has obvious cutoff, can make specific wavelengths of light by light reflection and let other band (or decay) optical elements. With the work area pass filter can be ultraviolet, visible, near infrared, far infrared, in accordance with the scope of application depending on your. Half bandwidth (FWHM) of less than 25nm, the center wavelength of positive and negative 1.0nm, peak transmittance greater than 85%. A thickness of less than 1.2mm. is suitable for measuring instrument, laser range finder, a variety of test system, night vision and other products.

關閉
產(chǎn)品咨詢
客服熱線：400-700-9997

Narrowband 903nm laser range finder filter (narrow band pass filter) is a kind of bandwidth is very narrow, short wave and long wave has obvious cutoff, can make specific wavelengths of light by light reflection and let other band (or decay) optical elements. With the work area pass filter can be ultraviolet, visible, near infrared, far infrared, in accordance with the scope of application depending on your. Half bandwidth (FWHM) of less than 25nm, the center wavelength of positive and negative 1.0nm, peak transmittance greater than 85%. A thickness of less than 1.2mm. is suitable for measuring instrument, laser range finder, a variety of test system, night vision and other products.

Advantage:

Low price

Wavelength stability,

Cutoff rate relatively high OD4.

Small semi bandwidth is only 25nm

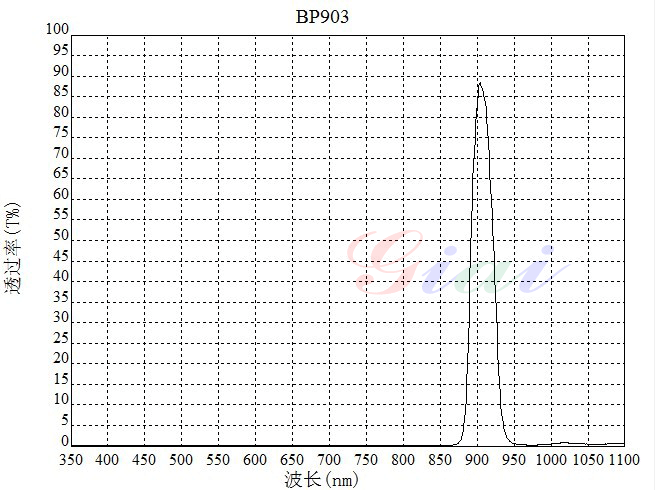

Optical index:

The peak transmittance: T>85%

Bandwidth: 25nm

Wavelength: 903 ± 1nm

Appearance: 60/40

Field of application:

Night vision mobile phone

Laser night vision instrument,

Laser measuring instrument

Security 905 infrared camera

Optical instrument

Biological, face, fingerprint, face, iris recognition system

Giai photnics co. , ltd
